Category

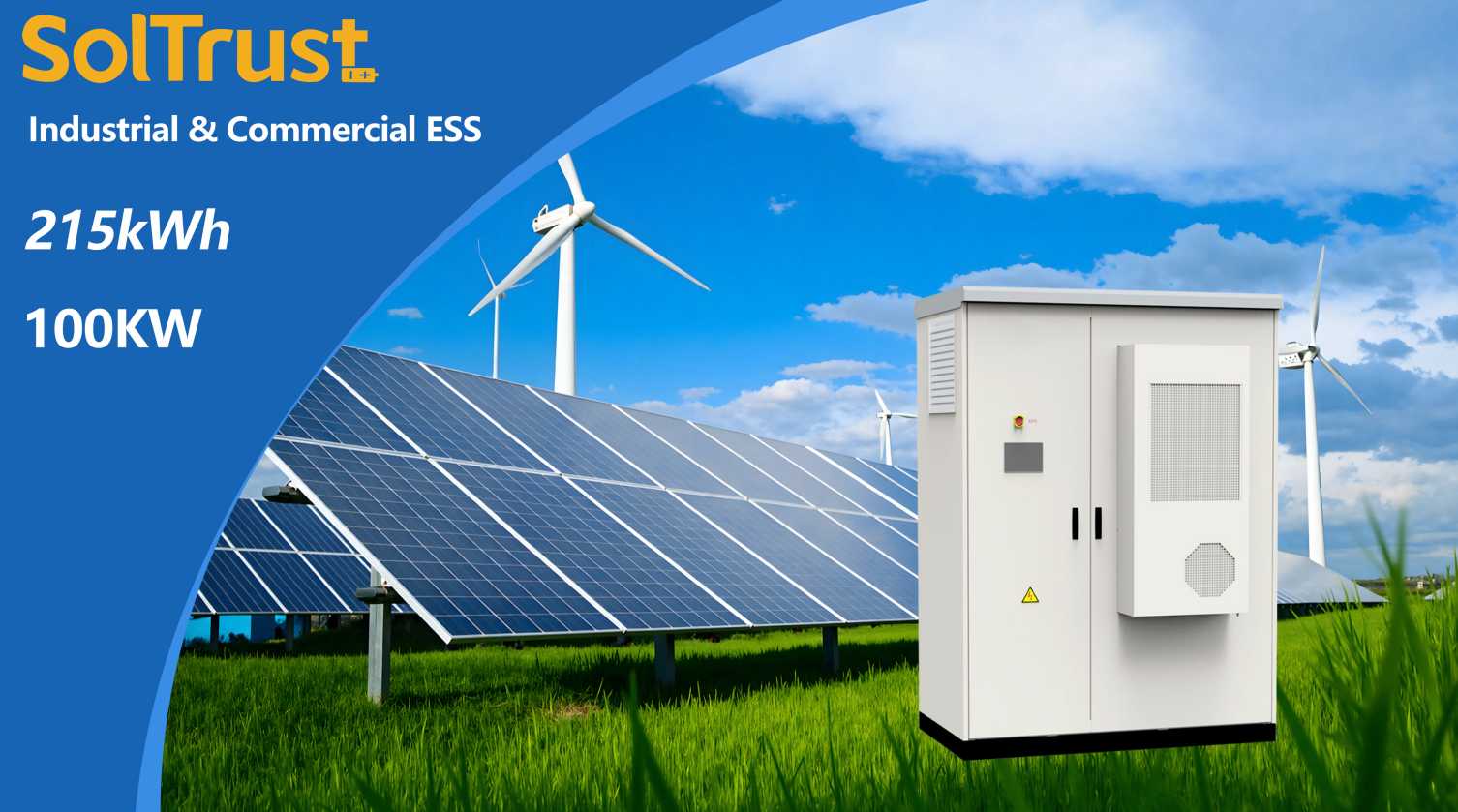

Industrial & Commercial ESS
215kwh-100KW
Overview
The SOLTRUST Integrated Commercial and Industrial Energy Storage System is a highly integrated, cutting-edge energy solution. It innovatively integrates a lithium-ion battery system, intelligent BMS (Battery Management System), PCS (Power Conversion System), EMS (Energy Management System), temperature control system, fire protection system, and cloud platform into one unit. With higher safety standards, simpler management, lower overall costs, and higher return on investment, this product flexibly meets diverse needs and provides commercial and industrial enterprises with one-stop, low-carbon, and high-yield energy support.
The SOLTRUST Integrated Commercial and Industrial Energy Storage System is a highly integrated, cutting-edge energy solution. It innovatively integrates a lithium-ion battery system, intelligent BMS (Battery Management System), PCS (Power Conversion System), EMS (Energy Management System), temperature control system, fire protection system, and cloud platform into one unit. With higher safety standards, simpler management, lower overall costs, and higher return on investment, this product flexibly meets diverse needs and provides commercial and industrial enterprises with one-stop, low-carbon, and high-yield energy support.
Quantity:
| Product Introduction | ||||||
| 1,System: | 2,AC | 3,DC | 4，Battery System | |||
| Nominal capacity:215kWh | Nominal power:100kW | DC full load voltage range:200V-950V | Battery type:LFP | |||
| Nominal output power:100kW | Nominal voltage:400V | Rated power:100kW | Battery cell cycle life:≥6000 cycles@0.5C，25℃ | |||
| Protection level:IP55 | Nominal current:145A | DC maximum current:192A | Rated capacity:215kWh | |||
| Design life:15 years | Nominalfrequency:50Hz/60Hz±2.5Hz | Stabilized voltage accuracy:≤±2% | Rated voltage:768V | |||
| Working temperature:-20℃~60℃ | Power factor:-0.99~＋0.99 | Stabilized current accuracy:≤±5% | Voltage range:672V~864V | |||
| Cooling method:Air cooling(HVAC cooling) | AC:3＋N＋PE | Battery cell specification:3.2V/280Ah | ||||
| Fire protection:Aerosol/FM200 | Overload capacity:1.1 times(long term),1.2 times(1min) | Battery pack:1P*20S*12S | ||||
| Altitude:5000m(>3000m Derating) | On/off grid switching time/Off grid:<10ms/possessed(Paired with STS) | Maximum charge and discharge current:140A | ||||
| Dimensions(W*D*H):1800*1200*2300mm | Management system:BMS,high voltage box, wire harness | |||||
| Weight:3000kg | Battery cooling:Air condition cooling(HVAC cooling) | |||||
| Certifications:En50549-1/UN38.3/IEC62619/CE | Cooling capacity:3kw*1pc | |||||
The SOLTRUST Integrated Commercial and Industrial Energy Storage System is a highly integrated, cutting-edge energy solution. It innovatively integrates a lithium-ion battery system, intelligent BMS (Battery Management System), PCS (Power Conversion System), EMS (Energy Management System), temperature control system, fire protection system, and cloud platform into one unit. With higher safety standards, simpler management, lower overall costs, and higher return on investment, this product flexibly meets diverse needs and provides commercial and industrial enterprises with one-stop, low-carbon, and high-yield energy support.
Integrated Design for Safety and Reliability
1. It adopts high-safety lithium iron phosphate battery cells, with a cycle life of over 6,000 times and a design lifespan of 15 years.
2. The cabinet has an IP rating of up to IP55, enabling it to adapt to a variety of complex environments. A built-in multi-level fire protection system (aerosol/FM200) provides solid protection for safe operation.
Intelligent Temperature Control for Outstanding Energy Efficiency
It adopts a precision air conditioning cooling solution to ensure that the battery cells operate within the optimal temperature range. This effectively extends the overall service life of the system and guarantees stable output under all climatic conditions (-20℃ ~ 60℃).
Smart Management for Cost Reduction and Efficiency Enhancement
1. The built-in intelligent EMS can automatically implement charging and discharging strategies based on time-of-use electricity prices to achieve"peak shaving and valley filling", significantly reducing electricity costs.
2. It supports functions such as anti-reverse current and demand management, monitors loads in real time, optimizes power distribution capacity, and avoids additional expenses.
Application Scenarios
1. Peak Shaving and Valley Filling: Leveraging the price difference between peak and off-peak electricity periods, the system charges during off-peak/flat periods and discharges during peak periods, significantly reducing enterprises' electricity costs.
2. Demand Management: Smoothes the electricity load of enterprises, lowers the maximum demand, and reduces the expenditure on basic electricity fees.
3. Backup Power Supply: Provides an uninterruptible power supply when the power grid fails, ensuring the continuity of critical business operations.
4. PV-Storage Integration: Integrates with photovoltaic (PV) systems to increase the self-consumption rate of green electricity and maximize energy efficiency.
