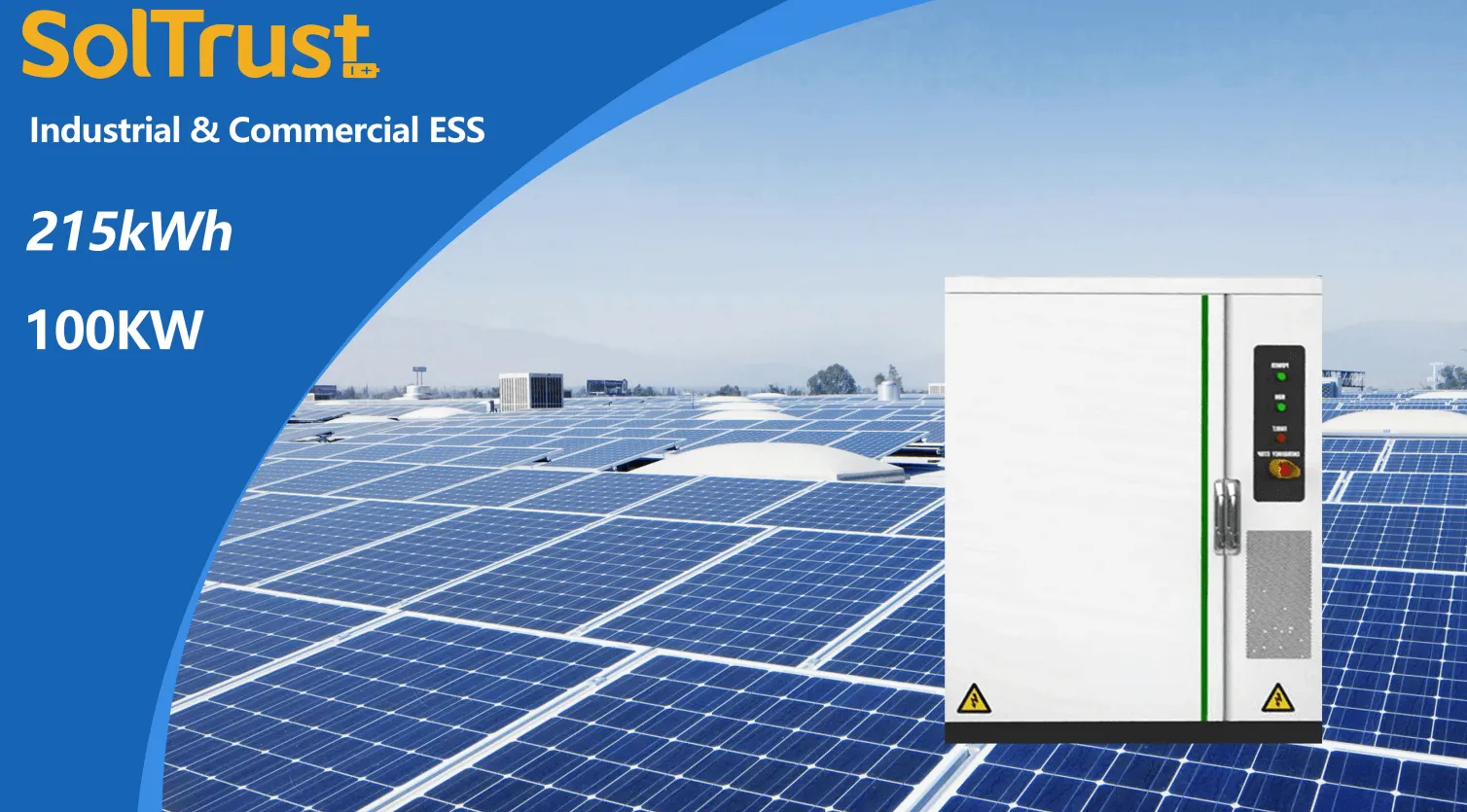

Industrial & Commercial ESS

215kwh 100KW

Overview：
The KEBE Integrated Commercial and Industrial Energy Storage System is a highly integrated intelligent energy solution that combines lithium-ion batteries, BMS (Battery Management System), PCS (Power Conversion System), EMS (Energy Management System), temperature control system, fire protection system, and cloud platform into one. Through its innovative integrated design, the system features high safety standards, simple management, and low-cost operation. It provides low-carbon and high-benefit energy support for commercial and industrial users, and flexibly adapts to diverse application scenarios.

Quantity:

Contact Now

add to cart

Battery system capacity:
Battery system capacity:
Battery voltage range:	Battery system capacity:
Cell type:	3.2V/280Ah
Rated power:	100kw
Maximum output power:	110kw
Rated grid voltage:	380V AC
Rated grid frequency:	50/60Hz，±5Hz
Battery cycle life:	>5000 times(0.5C@25°)(Energy retention rate ≥80%)
Charge and discharge rate:	≤0.5C
System efficiency:	Maximum efficiency 86%（@100kw/1 charge and 1 discharge）
Charge-discharge conversion time:	≤200ms
Thermal management:	Smart liquid cooling
Firefighting:	Aerosol + perfluorohexanone
UPS:	15 minutes
Control method:	Remote/Local
Operating mode:	On/off network(Manual off-network)
Communication method:	CAN/Eth/485(4G optional)
Access method:	AC bottom incoming line/three-phase four-wire
Use ambient temperature:	-30°C~+55°C
Use ambient humidity:	0~95%RH
Storage temperature:	-30°C~＋60°C
Working altitude:	2000m without derating
Protection level:	IP54(Battery compartment)
Size:	141414502180(mm)(Excluding hanging ring height)
Weight:	2700kg

Overview：

The KEBE Integrated Commercial and Industrial Energy Storage System is a highly integrated intelligent energy solution that combines lithium-ion batteries, BMS (Battery Management System), PCS (Power Conversion System), EMS (Energy Management System), temperature control system, fire protection system, and cloud platform into one. Through its innovative integrated design, the system features high safety standards, simple management, and low-cost operation. It provides low-carbon and high-benefit energy support for commercial and industrial users, and flexibly adapts to diverse application scenarios.

Core Advantages

1. High Protection for Greater Reliability**: The battery compartment of the cabinet has an IP54 protection rating, which effectively resists the intrusion of dust and moisture, adapts to a variety of complex environments, and ensures the stable operation of the system.

2. Strong Fire Protection for Enhanced Safety**: It adopts a PACK-level refined fire protection design, combined with a fire-proof isolation safety structure, to achieve multiple protections and fully guarantee the intrinsic safety of the system.

3. Small Temperature Difference for Longer Lifespan**: Advanced temperature control technology ensures that the temperature difference between battery cells in the cabinet is ≤ 5℃, which effectively slows down battery degradation. The system lifespan is increased by more than 20% compared with traditional air-cooled solutions.

4. Rapid Deployment for Higher Flexibility**: It supports flexible installation and rapid deployment according to actual on-site conditions, which greatly improves the efficiency of project implementation and reduces installation costs.

Application Scenarios

1. Peak-Valley Arbitrage for Industry and Commerce: Leverage electricity price differences to optimize power resources, thereby utilizing power efficiently and saving electricity costs.

2. Integrated Application of Solar Energy Storage and Charging: The integration of solar energy storage and charging can alleviate the impact of high-current charging of charging piles on the regional power grid.

3. Transformer Capacity Management: Monitor the real-time power of the transformer to ensure that the transformer power does not exceed the limit, and reduce the user's power demand.

4. Renewable Energy Consumption: Industrial and commercial energy storage systems can be used in combination with new energy facilities such as solar photovoltaics and wind energy.
